Especificaciones

General

  Frequency Bands

   VHF1:136-174  UHF1:400-470MHz  UHF3:350-400MHz

  Channel Capacity

   1024

  Channel Space

   12.5KHz/25KHz

  Dimensions(H*W*D)

   125*54*35mm

  Weight

   320g (With standard battery and antenna)

  LCD

   2.0 inch transflective color LCD 240×320 pixels, 262K colors

  Operating Voltage

   DC 7.4V

  Battery

   2400mAh

  Battery Life
  (5-5-90 Duty Cycle, High TX Power)

   Analog: 13H(No GPS)  11.5H(With GPS)

   Digital: 15H(No GPS)   13H(With GPS)

Reliability

  Operating Temperature

   -30 ~ +60℃

  Storage Temperature

   -40 ~ +85℃

  IP Rating/Humidity

   IP67 (IEC60529)

  Shock& Vibration

   Per MIL-STD-810 C/D/E/F/G standard

  ESD

   IEC 61000-4-2(level 4) ±8KV(Contact)  ±15KV(Air)

Receiver

  Digital Sensitivity

   -120dBm/BER 5% / -116dBm/BER 1%

  Digital Dynamic Faded Sensitivity
   (100KM/H& 8KM/H Rayleigh Fading)

   -104dBm

  Analog Sensitivity

   -120dBm/12dB SINAD

  Intermediation

   70dB (TIA603) 65dB (ETSI)

  Blocking

   90dB (TIA603 & ETSI)

  Spurious Response Rejection

   75dB (TIA603 & ETSI)

  Adjacent Channel Selectivity

   75dB@25 KHz(TIA603&ETSI) / 65dB@12.5KHz(TIA603&ETSI)

  Conducted Spurious Emission

   -57dBm

  Rated Audio Power Output

   1W

  Rated Audio Distortion

   3%

  Hum and Noise

   45dB @25KHz / 40dB@12.5KHz

  Audio Response

   +1dB - -3dB

  Digital Vocoder Type

   AMBE++/NVOC

Digital Protocol

ETSI-TS102 361-1,-2,-3,-4

Transmitter

  Frequency Stability

   0.5ppm

  RF Power Output

   High:4W  Low:1W

  Digital Modulation

   7K60FXD  (Data Only) / 7K60FXW (Data and Voice)

  Analog Modulation

   16K¢F3E @ 25KHz / 11K¢F3E @ 12.5KHz

  4FSK Modulation Accuracy

   5%

  4FSK TX BER

   0%

  4FSK and Magnitude Error

   5%/1%

  Adjacent Channel Power

   70dB @ 25 KHz / 60dB @12.5 KHz

  Conducted and Radiated Emission

   -36dBm <1GHz / -30dBm >1GHz

  Transmission Deviation limits

   5KHz@25KHz / 2.5KHz@12.5KHz

  Audio Distortion

   3%

  Hum& Noise

   45dB @ 25KHz /40dB @ 12.5KHz

  Audio Response

   +1dB ~ -3dB

GPS&GLOANSS

TIFF Cold Start

   60s

  TIFF Hot Start

   10s

  Horizontal Positioning Accuracy

   10meters

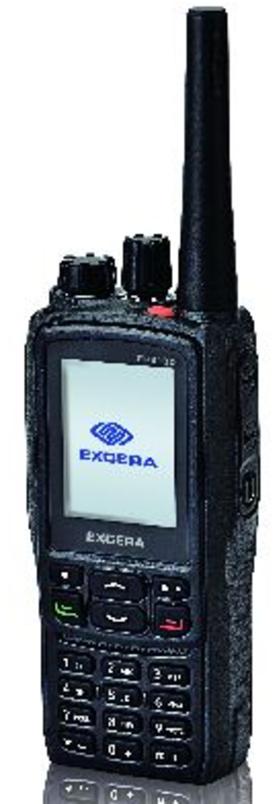

EP8100
* Full Duplex Communications
* 2.0'' HD Transflective TFTLCD Display
* IP67 and MIL-STD-810 Standards Compliance
* DMR TierⅡ conventional and DMR TierⅢ trunking









Caracteristicas

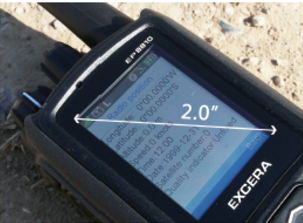

Resources2.0’’ HD Transflective TFT LCD Display
Adopt 2.0’’ HD transflecitve TFT LCD display, allowing good visibility even under outdoor strong sunlight.













High Capacity Battery Design
Equipped with 2400mAh or 3400mAh high capacity Li-ion battery to make sure the radio’s usage life.












Built-in Bluetooth (Optional)
Equipped Bluetooth inside supports the further features such as BT accessories, BT Wireless programming and other applications.













Built-in Noise Reduction Function(Optional)
Featured with advantage noise reduction, supports extra 25 dB noise cancellation performance.












Full-duplex calling(Optional)
Full duplex calls allow for natural and intuitive communications without push-to-talk (only in trunking mode)












Built-in-GPS(Optional)
Supports viewing of GPS position information and sending of GPS text message.












DMR TierIII Support
Supports DMR TierIII,just by software upgrade and make the radio application more rich and more advanced.











Rich API Support
Rich API supports the user or the third party to develop supplemental applications.

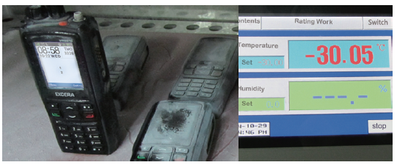

IP67 and MIL-STD-810 Standards Compliance
EP8100 is compliant with the MIL-STD-810-G and IP67(IEC60529) high reliability standards, ensuring outstanding performance even in harsh environment.
